Home CNC Machining Center VMC855 Heavy-Duty Vertical Machining Center | Precision VMC Machine for Metal Working & Mould Making
VMC855 Heavy-Duty Vertical Machining Center | Precision VMC Machine for Metal Working & Mould Making
VMC855 Heavy-Duty Vertical Machining Center | Precision VMC Machine for Metal Working & Mould Making
VMC855 Heavy-Duty Vertical Machining Center | Precision VMC Machine for Metal Working & Mould Making
VMC855 Heavy-Duty Vertical Machining Center | Precision VMC Machine for Metal Working & Mould Making
VMC855 Heavy-Duty Vertical Machining Center | Precision VMC Machine for Metal Working & Mould Making
VMC855 Heavy-Duty Vertical Machining Center | Precision VMC Machine for Metal Working & Mould Making
0 evaluate

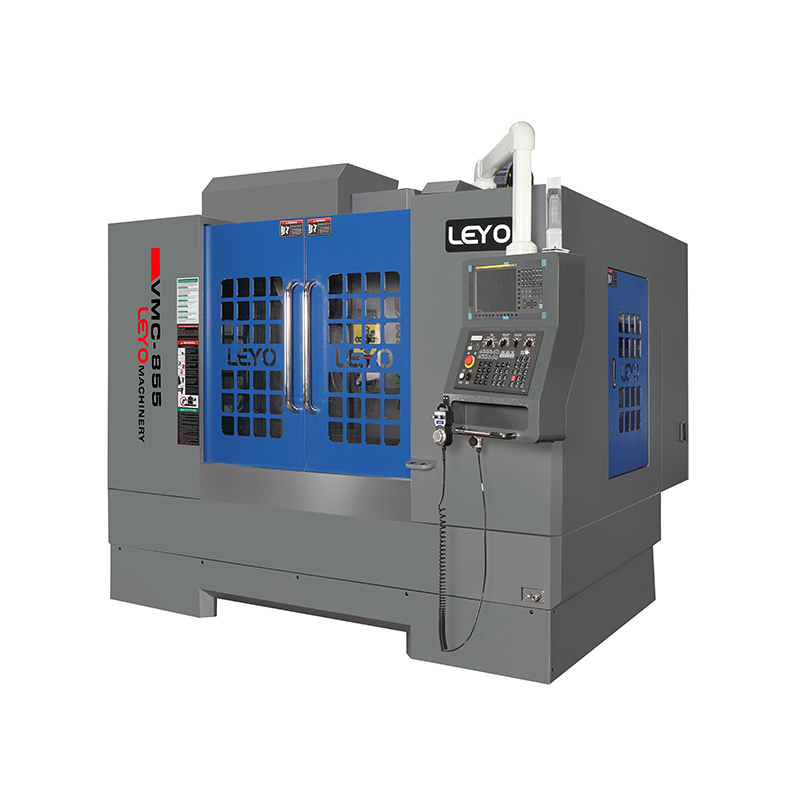

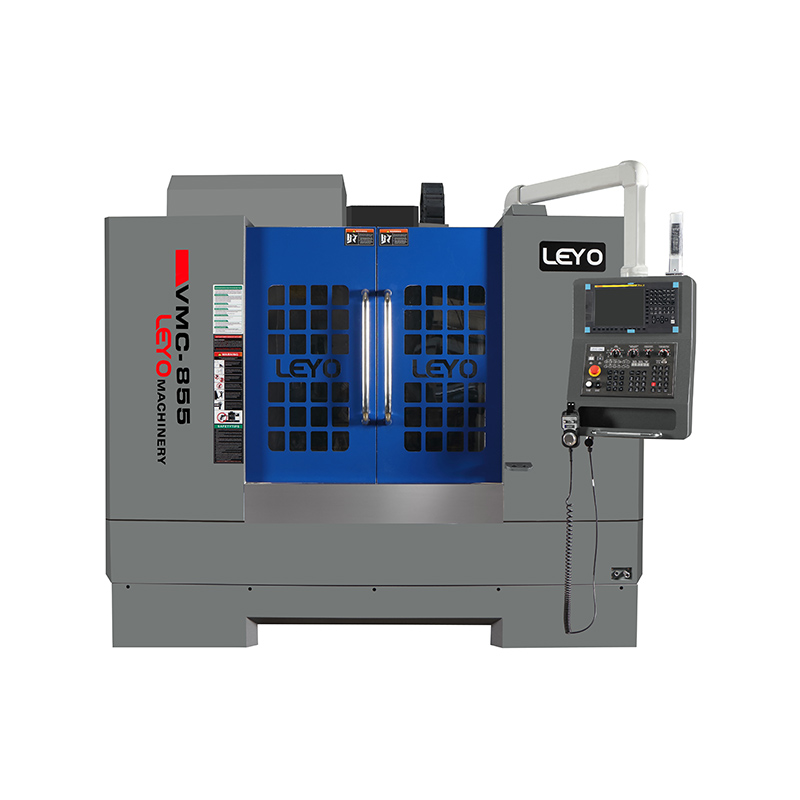

LEYO's VMC855 vertical milling machine adopts a gray blue sheet metal design, which is more advanced and dirt resistant in color. Compared to white, it is less prone to discoloration and yellowing, and remains as new after 3-5 years of use. And the control panel is designed as a movable control panel, which can be placed inside the machine during transportation and can enter a 40HQ container, saving shipping costs. In practical use, it is also possible to flexibly adjust the conditions and positions for easy operation.
  • VMC855

  • LEYO

库存: 0
Inquire
Add to Basket

Compared to VMC850, the machine body is more stable and vibration resistant, and the screw and wire rails are one size larger. The machine's load-bearing capacity and cutting force are correspondingly improved. Suitable for customers with heavy cutting needs.


Advantage

Wide application fields: particularly suitable for molds (small and medium-sized injection molds, die-casting molds, stamping molds), automotive parts, motorcycle parts, instruments and meters, hardware, valves, aerospace parts, education and training, and other fields. Capable of handling various processes from rough machining to precision machining (milling, drilling, tapping, boring, etc.).


Excellent cost-effectiveness: In small and medium-sized vertical machining centers, VMC855 typically represents an excellent balance between performance, reliability, and price. Compared to larger machine tools, its investment cost is lower; Compared to machine tools with smaller specifications or lower configurations, it provides stronger processing capabilities and a wider range of applications, with a high return on investment.


Technical Parameters
ItemsUnitVMC850VMC855
X/Y/Z axis travelmm800/500/500800/550/550
X/Y/Z rapid moving speedm48/48/48
X/Y/Z rapid feeding speedm20
Working table (L*W)mm1000x5001000x550
Working table max loadkg500600
Spindle taper hole/BT40
Spindle type*/Belt/Direct
Spindle motor power*kw11/15
Spindle speed*rpm8000/10000/12000
Controller*/HNC/LNC/SYNTEC/Mitsubishi/Fanuc/Siemens
Tool magazine capacity *T24/None
X/Y/Z position accuracymm±0.005
X/Y/Z reposition accuracymm±0.003
Machine weightkg51005200
Machine sizemm2600*2376*28002600*2400*2800


ItemsUnitVMC855
X/Y/Z axis travelmm800/550/550
X/Y/Z rapid moving speedm48/48/48
X/Y/Z rapid feeding speedm20
X/Y/Z motor powerkw3/3/3
Working table (L*W)mm1000x550
T-shaped groove (number of grooves width pitch)mm5-18×90
Working table max loadkg600
Distance from spindle end face to worktablemm120-670
Spindle taper hole/BT40
Spindle type*/Belt
Spindle motor power*kw11
Spindle speed*rpm10000
Tool magazine capacity *T24
Max tool diameter(Neighbor Empty)*lengthmmΦ120*300
Machine weightkg5100
Machine sizemm2600*2400*2800
