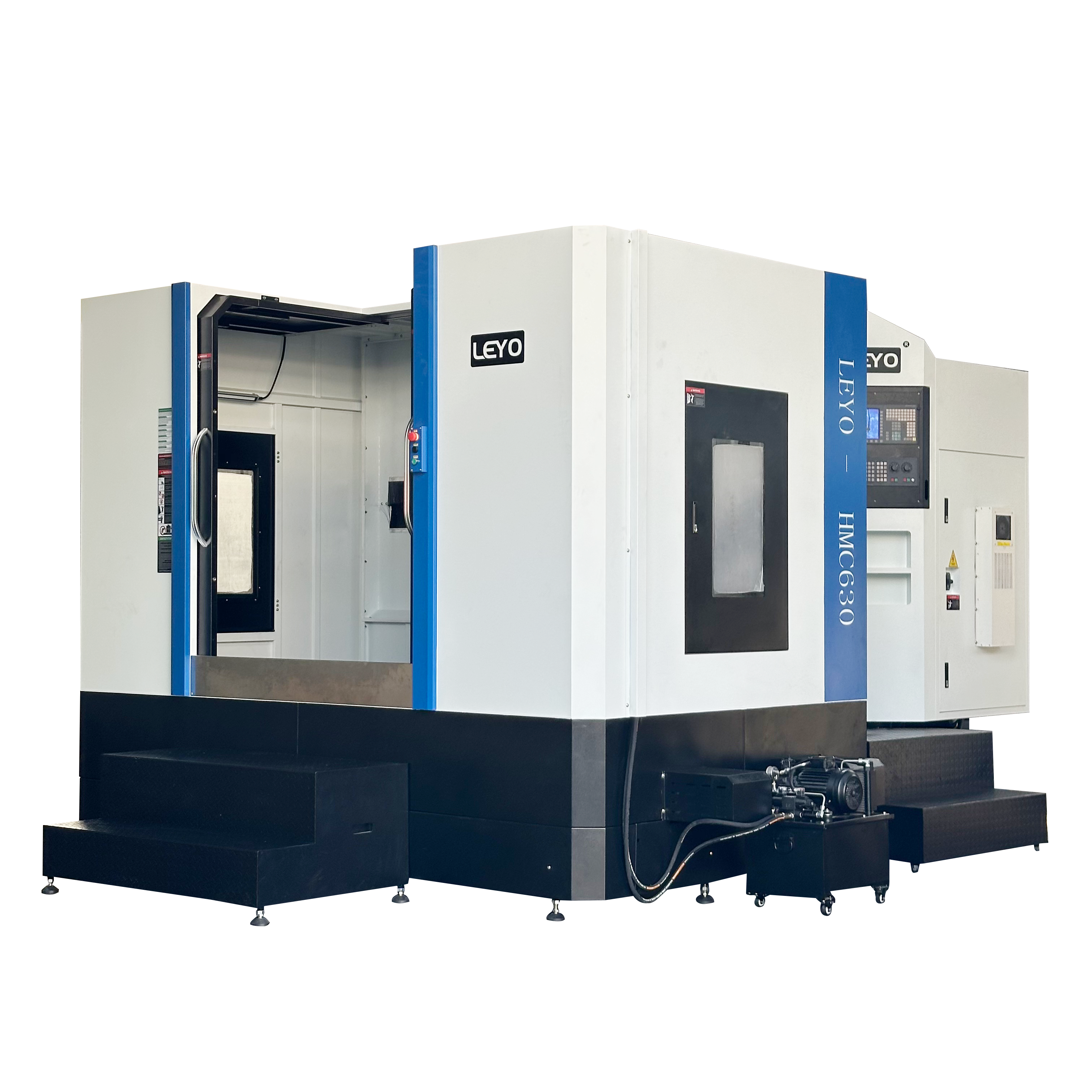

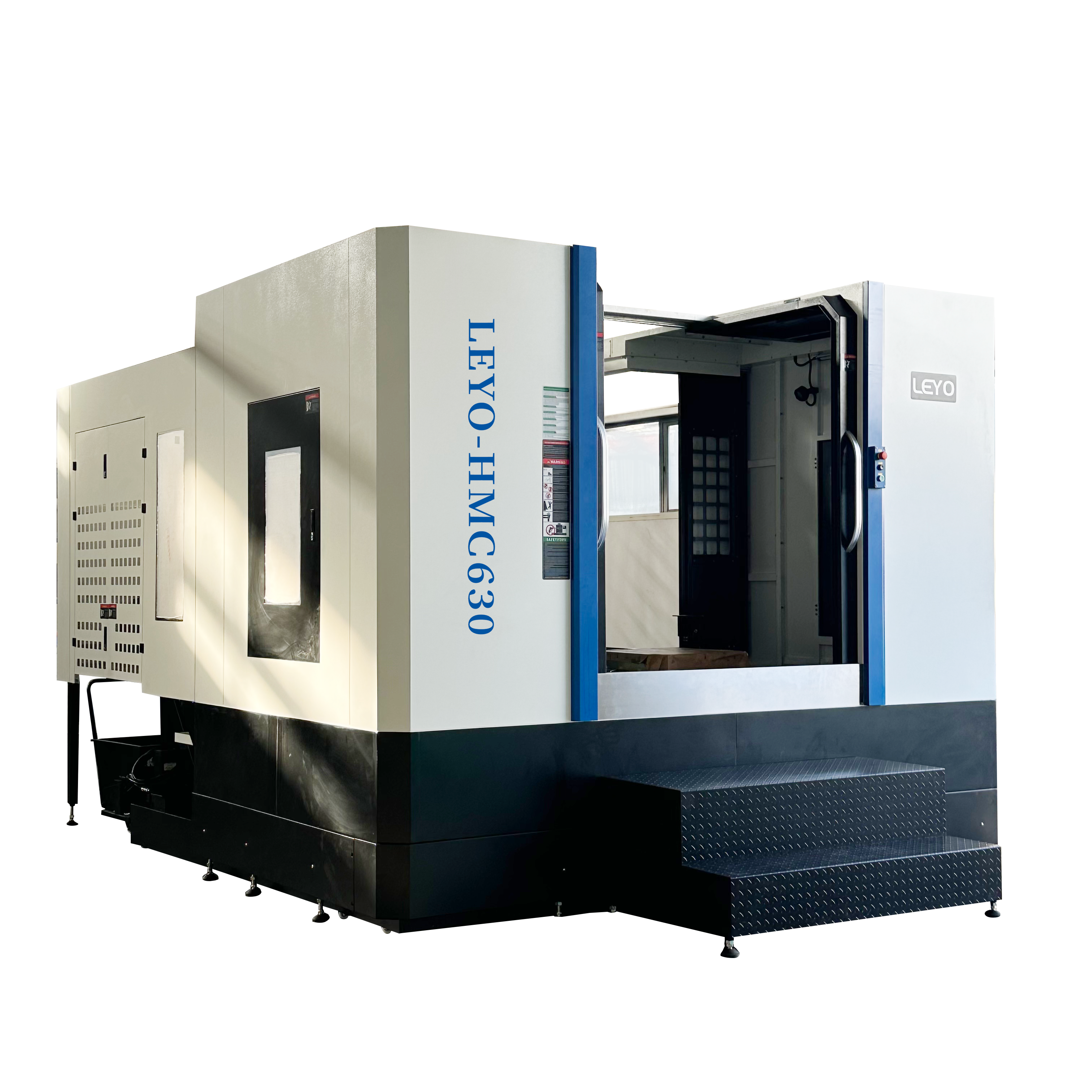

The LEYO HMC630 Horizontal Machining Center is engineered for high-efficiency, precision machining of complex box-type and multi-sided parts. Featuring a robust integral cast bed and a powerful BT40/50 spindle, it delivers exceptional rigidity and stability. The standard 2-pallet automatic work-changing system dramatically reduces idle time, boosting productivity. With its 4-axis capability and optional CNC rotary table, it enables complete machining in a single setup. Ideal for batch manufacturing in automotive, mold, and aerospace industries, the HMC630 combines accuracy, automation, and reliability to maximize your ROI.
-
HMC630
-
LEYO
库存： 0
Inquire
Add to Basket
Product Description
LEYO HMC630 Precision Horizontal Machining Center: Engineered for Unmanned Productivity & Superior Accuracy
Welcome to the future of precision manufacturing. The LEYO HMC630 Horizontal Machining Center is not just a machine; it's a complete production solution designed for manufacturers who demand uncompromising accuracy, maximum uptime, and exceptional return on investment. Built for the rigorous demands of modern workshops, it excels in the batch processing of complex components requiring multi-face operations.
Core Specifications & Robust Construction:
Travel (X/Y/Z):1100*850*700 mm
Spindle: High-speed, high-torque integral spindle, BT40 or BT50 optional, speed up to 12,000 rpm.
Table: Precision-indexing 4th axis rotary table (optional NC rotary), with a standard load capacity of 1200 kg.
Pallet System: Standard 2-station automatic pallet changer (APC), ensuring continuous operation by allowing workpiece setup off the machine.
Tool Magazine: Arm-type magazine with 24 tool capacity , enabling quick tool changes for complex machining programs.
Control System: User-friendly CNC system (Siemens/FANUC optional), supporting advanced functions like helical interpolation and rigid tapping.
Why Choose the LEYO HMC630
Exceptional Rigidity & Thermal Stability:
The one-piece, heavily ribbed cast iron bed and symmetrical column structure absorb cutting vibrations effectively. Coupled with a optimized thermal displacement control system, it guarantees micron-level precision even during long, unattended machining cycles.
Designed for Automation:
The integrated APC is the key to lights-out manufacturing. While one pallet is being machined, operators can safely prepare the next workpiece outside the machining area, virtually eliminating non-cutting time. This makes it perfect for Flexible Manufacturing Systems (FMS).
Complete Machining in One Setup:
With its horizontal spindle orientation and true 4-axis capability, the HMC630 allows you to machine up to four sides of a workpiece in a single clamping. This drastically reduces accumulated errors, improves positional accuracy between features, and saves significant fixture and handling time.
High Efficiency & Reliability:
The rapid traverse rates and quick pallet/ tool changes minimize idle time. All core components, such as linear guides, ball screws, and spindle units, are from internationally renowned brands, ensuring long-term reliability and minimal maintenance.
Typical Applications:
Automotive: Engine blocks, cylinder heads, transmission housings, turbocharger parts.
Mold & Die: Large plastic injection molds, die-casting molds, stamping dies.
Aerospace: Structural frames, landing gear components, turbine housings.
General Machinery: Pump bodies, valve bodies, gearboxes, hydraulic components.
Our Commitment:
As a professional CNC machine tool manufacturer, LEYO provides more than just equipment. We deliver a partnership. From pre-sales consulting and process planning to installation, training, and responsive after-sales support, our team is dedicated to ensuring your production success.
Invest in the LEYO HMC630 to elevate your manufacturing capabilities, reduce unit costs, and gain a competitive edge in the global market. Contact us today to discuss your specific requirements and request a detailed solution.
