Product Category
Equipped with a 12-station power turret featuring driven tooling on all stations, the CL-420CNC performs off-center milling, cross-drilling, keyway cutting, and contour profiling directly on the turned workpiece. This makes it a genuine CNC lathe with live tooling—capable of completing complex shaft, disc, and flange components in a single clamping.
-
CL-420
-
LEYO
CL-420CNC power turret CNC lathe with live tooling, 12-station turret, A versatile CNC turning and milling compound machine for shaft, disc & automotive parts. CE/ISO certified. Get a quote.
Industries & Applications
Automotive Components: As a proven CNC turning and milling solution for automotive applications, the CL-420CNC excels in machining shafts, valve spools, piston pins, and turbocharger components in a single setup
Hydraulic and Pneumatic: Precision production of hydraulic fittings, valve bodies, and connector pins—making it a reliable CNC machine for precision shaft parts
Versatile Precision Machining: Versatile CNC machine for disc and flange parts—bushings, flanges, bearing housings, and custom turned-milled components for job shops and contract manufacturers

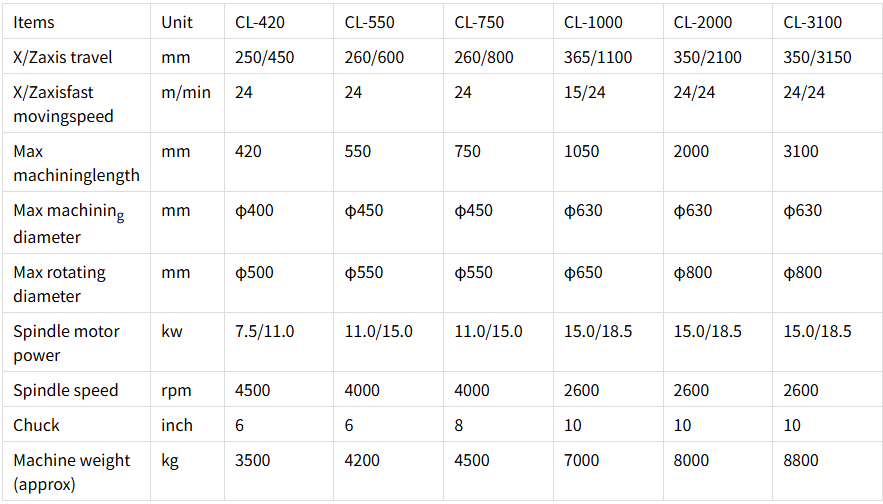

Technical Specifications：
Tip：The information provided above is for reference only. Specific technical parameters can be customized according to customer needs, and the actual specifications shall prevail.
FAQ:
What is the advantage of a power turret with driven tools?
A standard lathe only performs turning. The CL-420CNC's power turret CNC lathe design enables milling, drilling, and tapping directly on the turned part—eliminating secondary setups and improving overall accuracy.
Can this machine handle both shaft and disc-type components?
Yes. The CL-420CNC is purpose-built as a CNC turning and milling compound machine, equally capable of precision shaft work and complex disc/flange machining with off-center features.
Ready to Consolidate Your Turning and Milling Operations?
Send us your part drawing. Our application engineers will provide a free machining feasibility study and a tailored turnkey proposal for your production requirements.
